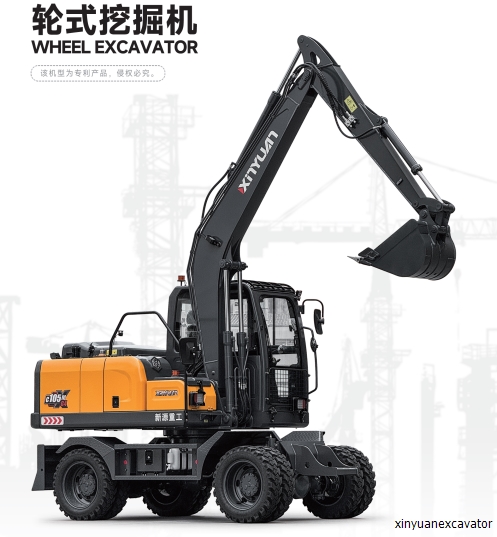

C105MG4 Series Performance Edition: The Industry-Leading Wheeled Excavator

Key Specifications & Dimensions:

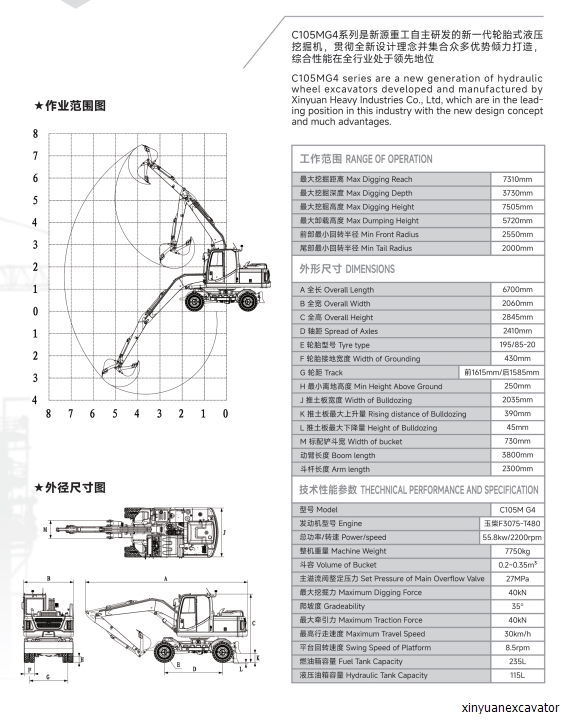

1. Work Range Diagram:

• Maximum Digging Reach: 7,310 mm

• Maximum Digging Depth: 3,730 mm

• Maximum Digging Height: 7,505 mm

• Maximum Dumping Height: 5,720 mm

• Minimum Front Swing Radius: 2,550 mm

• Minimum Tail Swing Radius: 2,000 mm

2. Overall Dimensions (DIMENSIONS):

• Overall Length (A): 8,400 mm

• Overall Width (B): 2,060 mm

• Overall Height (C): 2,845 mm

• Wheelbase (D): 2,410 mm

• Tire Model (E): 195/85-20

• Ground Contact Width (F): 430 mm

• Track Width (G): 1,615 mm / 1,815 mm

• Minimum Ground Clearance (H): 250 mm

• Bulldozer Blade Width (J): 2,035 mm

• Bulldozer Max. Lift (K): 390 mm

• Bulldozer Max. Lowering Depth (L): 45 mm

• Standard Bucket Width (M): 730 mm

• Boom Length: 3,800 mm


  Technical Performance Parameters:

  • Model: C105MG4

  • Engine Model: Yuchai 4A3075-T480

  • Rated Power / Speed: 55.8 kW / 2200 rpm

  • Operating Weight: 7,750 kg

  • Bucket Capacity Range: 0.2 – 0.35 m³

  • Main Relief Valve Setting Pressure: 27 MPa

  • Maximum Digging Force: 40 kN

  • Maximum Traction Force: 40 kN

  • Gradeability: 35°

  • Maximum Travel Speed: 50 km/h

  • Swing Speed (Platform): 8.5 rpm

  • Fuel Tank Capacity: 235 L

  • Hydraulic Oil Tank Capacity: 115 L

  ---

  Core Advantages:

  • Unmatched Performance: Industry-leading metrics in reach, depth, and lifting capacity.

  • Superior Mobility: High travel speed (50 km/h) and excellent gradeability (35°) for efficient movement between job sites.

  • Power & Efficiency: Powered by a reliable Yuchai engine, balanced with significant digging and traction force.

  • Stable Design: Optimized dimensions and weight distribution ensure operational stability and safety.

  • Patented Innovation: Features proprietary technology developed by Xinyuan Heavy Industries.

  Manufacturer:
  Xinyuan Heavy Industries Co., Ltd.
